Advanced Style Settings: Opacity, Position & Transform

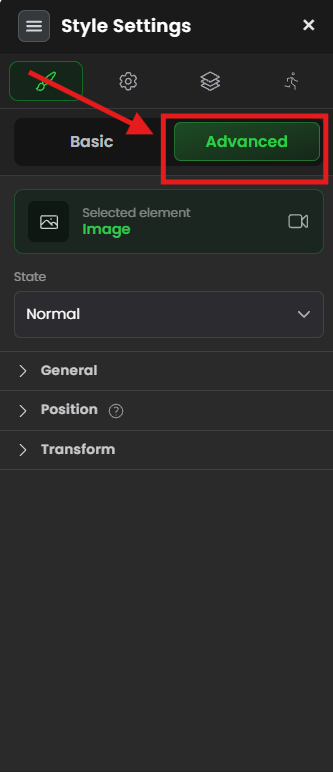

What Are Advanced Settings?

Advanced Settings are powerful styling options for complex layouts and effects.

The three main categories:

• Opacity — Transparency (see-through)
• Position — Where element sits on page (relative, absolute, fixed)
• Transform — Rotate, scale, move, skew elements

Think of it like advanced photo editing:

• Opacity = Making photo transparent
• Position = Moving photo around
• Transform = Rotating, scaling, skewing photo

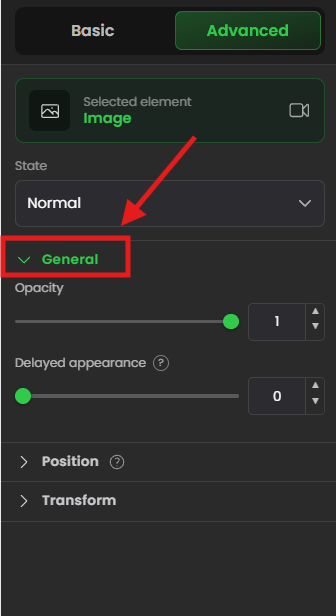

SETTING 1: OPACITY

What It Does

Opacity controls how transparent an element is (see-through).

Opacity Values

Scale: 0 to 1 (or 0% to 100%)

• 1.0 (100%) = Completely opaque (fully visible)
• 0.8 (80%) = Mostly visible, slightly transparent
• 0.5 (50%) = Semi-transparent (can see through)
• 0.3 (30%) = Very transparent (mostly see-through)
• 0 (0%) = Completely invisible (hidden)

When to Use Opacity

✓ Hover effects — Fade on hover ✓ Disabled states — Gray out disabled buttons ✓ Overlays — Semi-transparent overlay over images ✓ Watermarks — Faint background watermark ✓ Background elements — Deemphasize secondary content

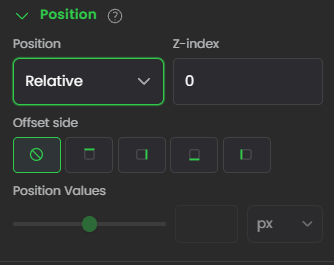

SETTING 2: POSITION

What It Does

Position controls where an element sits on the page and how it relates to other elements.

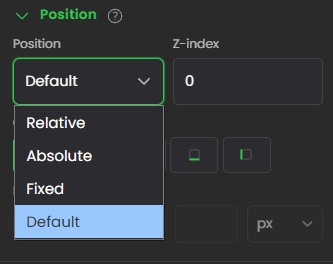

Four position types:

RELATIVE (Default)

What it does: Element is positioned relative to its parent container

Think of it like: Element stays in normal document flow but can be adjusted

How it works:

• Button moves relative to its parent column
• Other elements adjust around it
• Document flow is maintained

When to use:

✓ Normal positioning (most elements)
✓ Slight adjustments within normal flow
✓ Default for most use cases

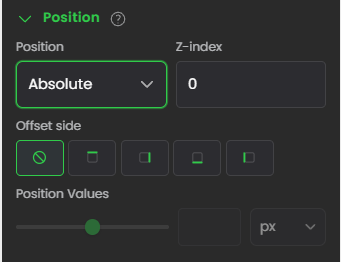

ABSOLUTE (Advanced)

What it does: Element is removed from normal flow and positioned absolutely

Think of it like: Element floats independently, ignoring normal document flow

How it works:

• Element can be positioned anywhere
• Other elements don't adjust around it
• Positioned relative to nearest positioned parent

When to use: ✓ Overlays (overlay one element on another)
✓ Floating elements (floating CTA button)
✓ Complex layouts (layered designs)
✓ Tooltips (position over other content)

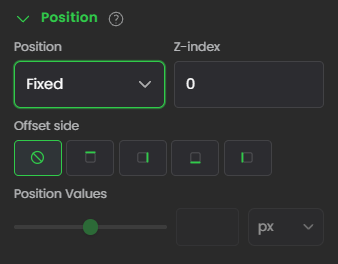

FIXED (Sticky)

What it does: Element stays in one place even when scrolling

Think of it like: Element is glued to your viewport

How it works:

• Element stays visible while user scrolls
• Doesn't move with page
• Perfect for sticky headers/footers

When to use: ✓ Sticky headers (stay at top)
✓ Floating buttons (always visible)
✓ Sticky sidebars
✓ Floating CTAs (call-to-action)

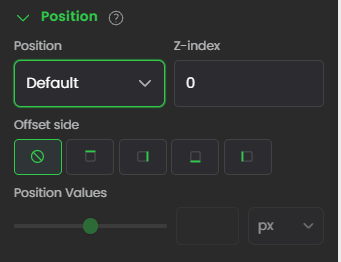

DEFAULT

What it does: Undoes position changes, returns to default (Relative)

When to use: ✓ Reset if you changed position incorrectly
✓ Revert to normal positioning

Z-INDEX (Layering)

What it does: Controls which element appears on top when elements overlap

Think of it like: Stack of papers where higher numbers are on top

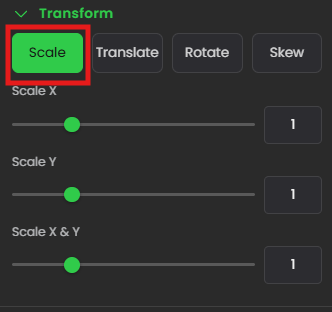

SETTING 3: TRANSFORM

What It Does

Transform changes the visual appearance of elements (scale, move, rotate, skew).

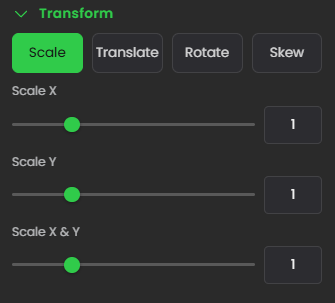

SCALE (Size Up/Down)

What it does: Makes element larger or smaller

Scale values:

• 1.0 = Normal size (100%)
• 1.5 = 150% size (50% larger)
• 2.0 = 200% size (double size)
• 0.5 = 50% size (half size)

Axes:

• X = Scale horizontally (wider/narrower)
• Y = Scale vertically (taller/shorter)

When to use: ✓ Hover effects (scale on hover)
✓ Focus states (zoom in on focus)
✓ Zoom animations
✓ Emphasis effects

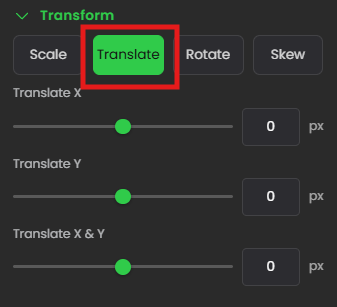

TRANSLATE (Move Position)

What it does: Moves element horizontally or vertically

Values: Pixels (px) or percentages (%)

Axes:

• X = Move left/right
• Y = Move up/down

Positive vs Negative:

• Positive X = Move right
• Negative X = Move left
• Positive Y = Move down
• Negative Y = Move up

When to use: ✓ Nudge elements (slight adjustments)
✓ Hover effects (move on hover)
✓ Animations (slide in/out)
✓ Fine-tuning layout

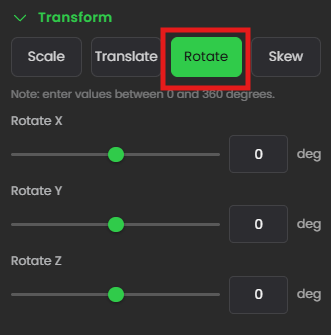

ROTATE (Turn Around)

What it does: Rotates element around an axis

Rotation values: 0-360 degrees

Axes:

• X = Rotate around horizontal axis (3D flip)
• Y = Rotate around vertical axis (3D flip)
• Z = Rotate on 2D plane (flat rotation)

When to use: ✓ Decorative elements (tilted text)
✓ 3D effects
✓ Creative designs (rotated images)
✓ Loading animations (spinning loader)

SKEW (Slant/Distort)

What it does: Slants/distorts element along an axis

Skew values: 0-360 degrees (though 0-90 is typical)

Axes:

• X = Skew horizontally (slant left/right)
• Y = Skew vertically (slant up/down)

When to use: ✓ Creative/decorative designs
✓ Modern, edgy layouts
✓ Parallax effects
✓ Unique visual styles

Note: Skew is rarely used in professional designs. Use sparingly.

Common Situations & Quick Fixes

Situation 1: "Absolute Position Element Disappeared"

What's happening: Element positioned absolutely but not visible.

Diagnostic steps:

1. Check Z-index
   • Is Z-index lower than other elements?
   • Increase Z-index (try 100 or 1000)
2. Check position values
   • Is element positioned off-screen?
   • Set Top, Left, Right, or Bottom values
   • Example: Top: 50px, Left: 50px
3. Check parent positioning
   • Parent must be positioned (not static)
   • Parent must be relative or absolute
   • Check parent position setting

Situation 2: "Fixed Position Element Scrolls With Page"

What's happening: Fixed positioning not working.

Diagnostic steps:

1. Verify position is set to Fixed
   • Is it actually set to Fixed?
   • Not Relative or Absolute?
2. Check on published page
   • Don't test in editor preview
   • Publish and test on live page
3. Check parent container
   • Fixed elements sometimes affected by parent's transform
   • Try moving element outside container

Situation 3: "Transformed Element Looks Blurry"

What's happening: Transform (scale, rotate, skew) causes blurriness.

Diagnostic steps:

1. Use whole numbers
   • Avoid decimal scales (1.33)
   • Use whole numbers (1.0, 1.5, 2.0)
2. Reduce extreme transforms
   • Extreme skew (45+ degrees) looks bad
   • Keep transforms subtle (0-30 degrees)
3. Test in different browsers
   • Some browsers render transforms differently
   • Edge cases might render poorly
